Zenwizard Studios Products Avaliable |
|||||
 |
 |
 |
 |
 |
 |
 |
 |
||||
Units are offered here on an AS IS basis. These units are 40 to 70 years old in some cases, and have exceded their expected design lifespan by a great deal. We strive to represent each unit as accurately as possible. Calibration services are offered at an additional charge. Reference the table below for the different levels of calibration services that are available. Full calibrations are not required for sale, however partial calibrations will not guarantee that a unit meets full factory specifications. Some units can be quite heavy to ship. We will ship insured on request, and appropriately pack equipment. Items can ship ground, express, or overnight. We will quote shipping on serious offers and inquiries. We will pack and ship, buyer will need to pay shipping. High rez images can been seen by right clicking an image and opening it in a new tab. To inquire about services or to purchase and item below, email us at Zenwizard@Zenwizardstudios.com or use the E-Mail a Wizard button below.
| |||||
Calibration Services Cost for calibration services vary widely based on the equipment and the gear needed to be calibrated as well as the level of calibration. Calibration can be done from basic function and accuracy check all the way up through NIST traceable alignments. Data can be provided on unit calibration upon request as well as for an additional fee. Calibrations can take an extended amount of time depending on the gear in need of service. A full factory alignment on a 4xx series scope, for example, can take 6-8 hours of bench time and that is when no repairs are required. Additional repairs add complexity as well as time to service interval. We try and keep our turn around time as efficiently as possable, however the Wizard does have a full time 9-5 job that is not part of the lab or bench workflows. Therefore, the Wizard is slower than some that have dedicated time to the tasks at hand. Please do keep that in mind with some longer than normal turn around times. | |||||
Custom Repair Solutions | |||||

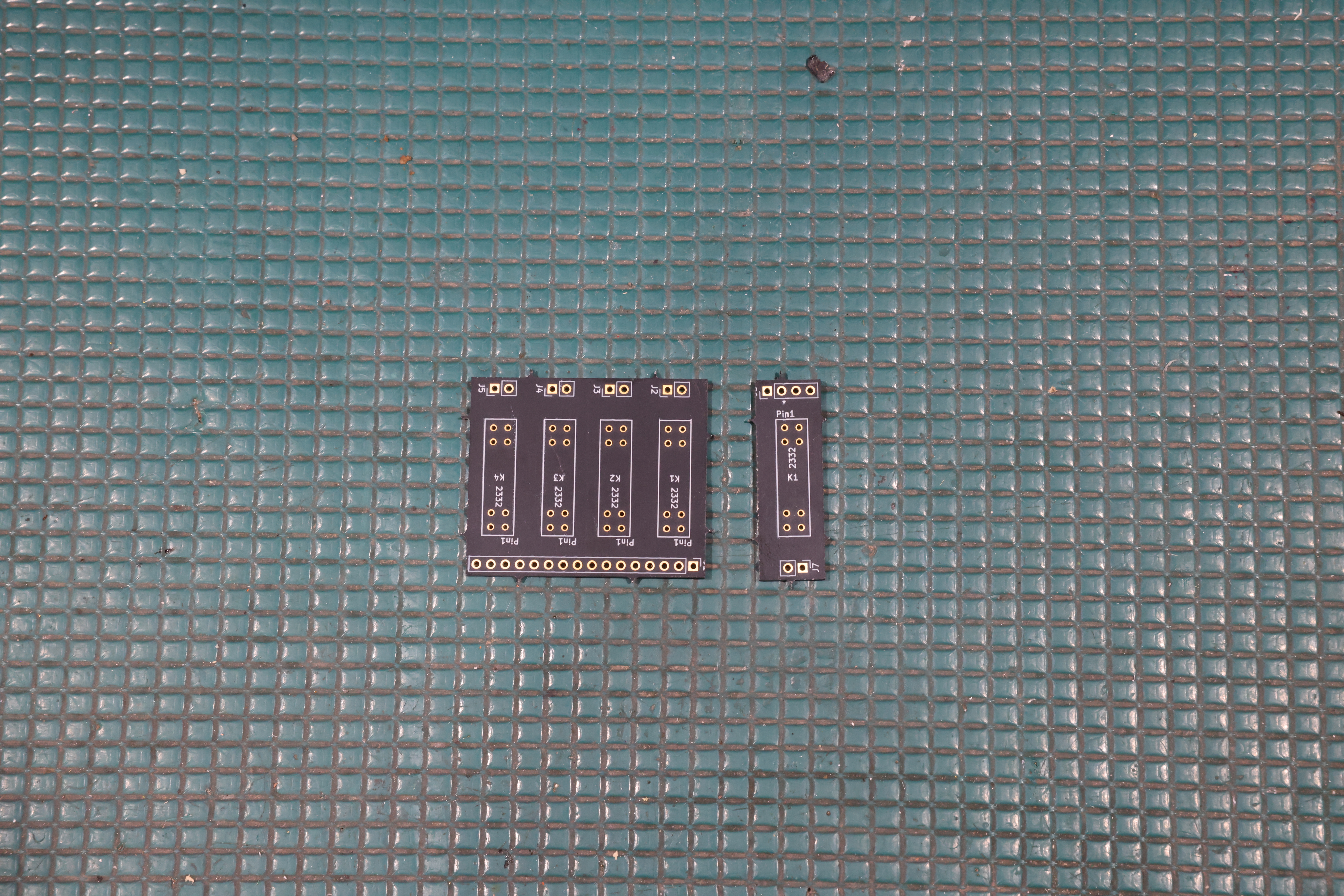

AA501 & AA501A Auto Ranging Relay Boards < |
A set of AA501 or AA501A auto range relay replacement boards Detail Video About the relay boards
|
$25.00 / Pair board only $250.00 / Pair fully assembled |
|||
Scopes | |||||

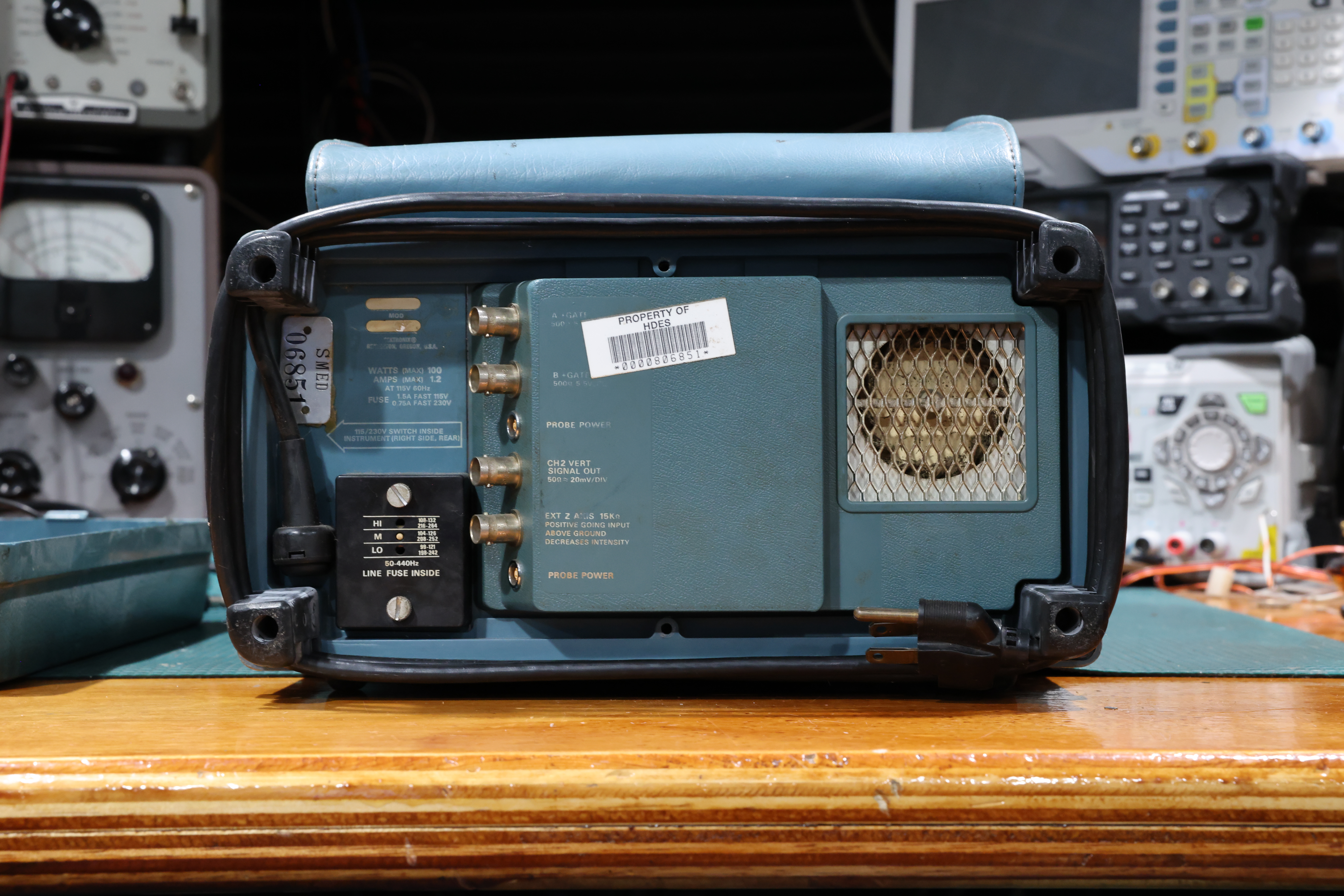

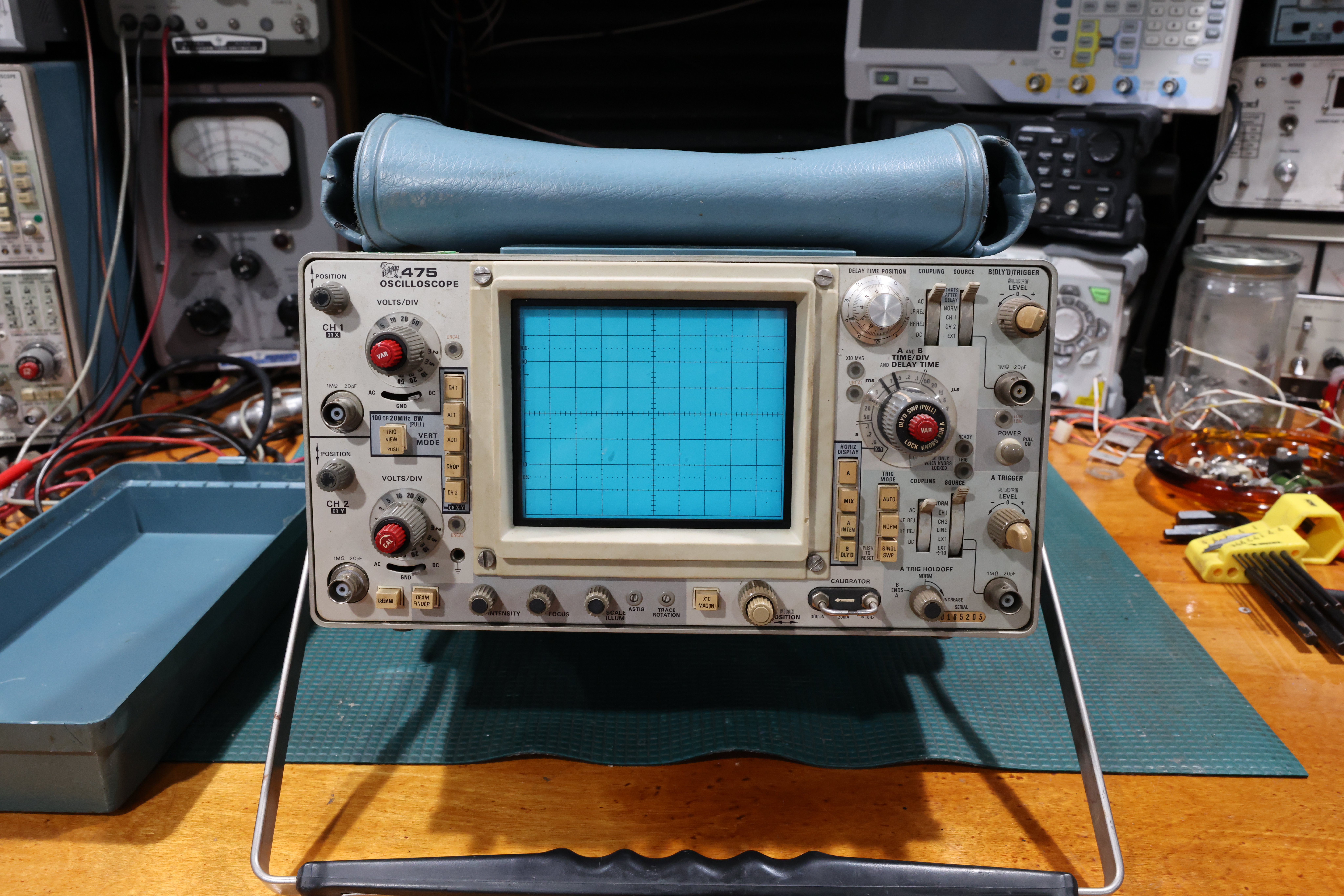

Tek 475 |
Tektronix 475 function testing has been done but unit has not been calibrated. Does not include probes SN - B185205 Youtube Video showing Testing & Repair
|
$200 |
|||
RF Gear | |||||

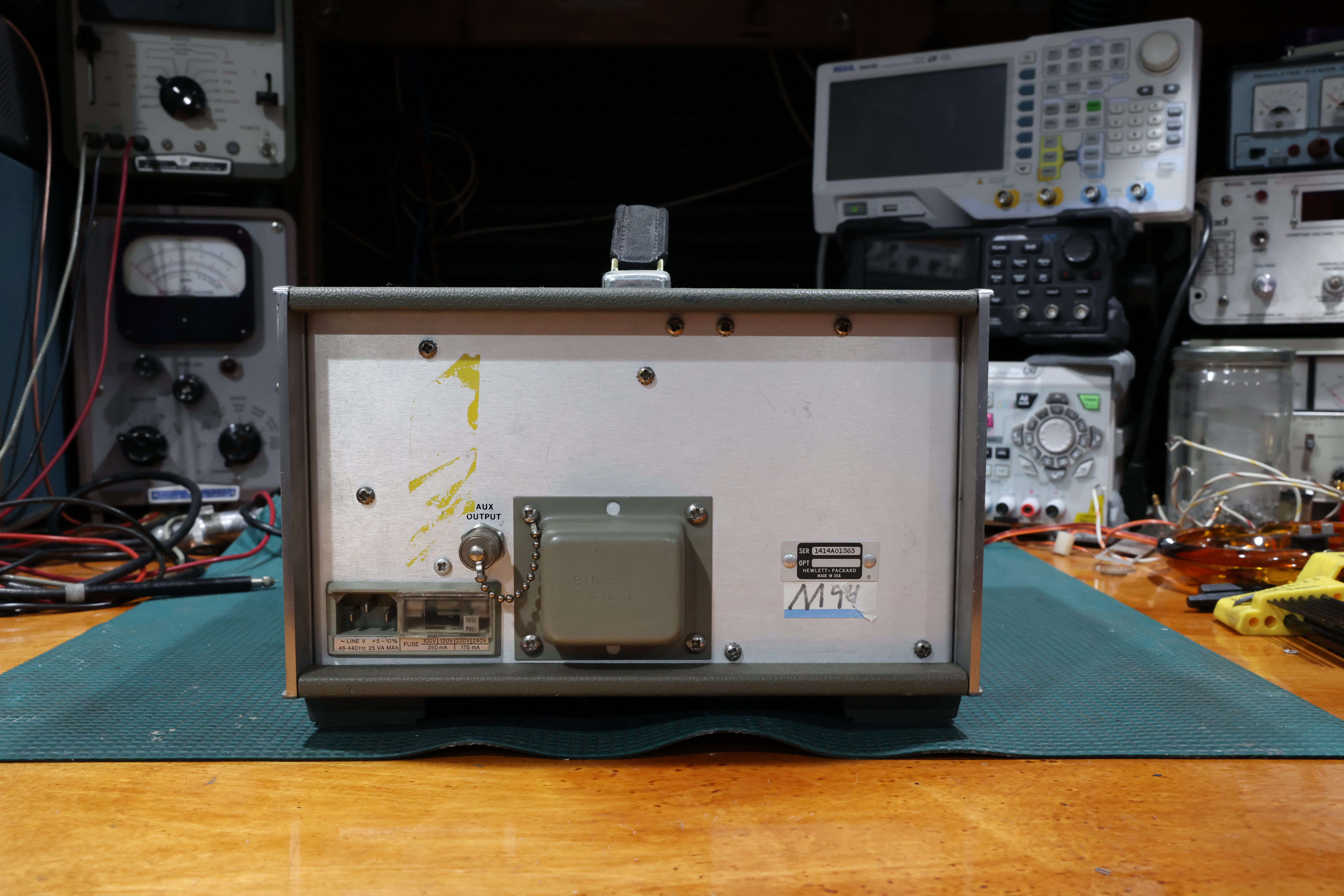

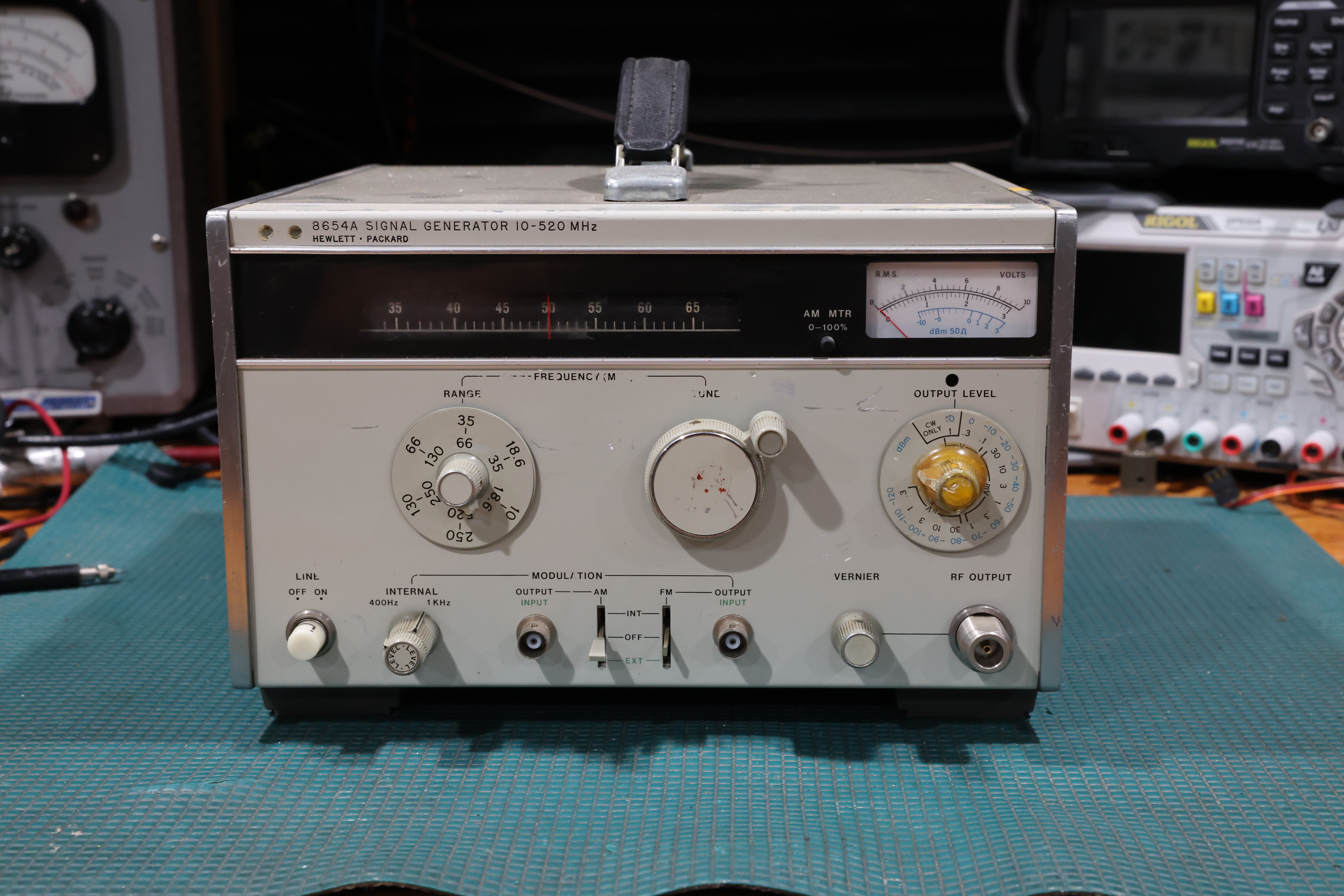

HP 8654A |
Function testing has been done but unit has not been calibrated. Unable to complete a full alignment due to lack of RF power meter SN - 1414A01363 Youtube Video showing Testing & Repair (Release to Come)
|
$200 |
|||

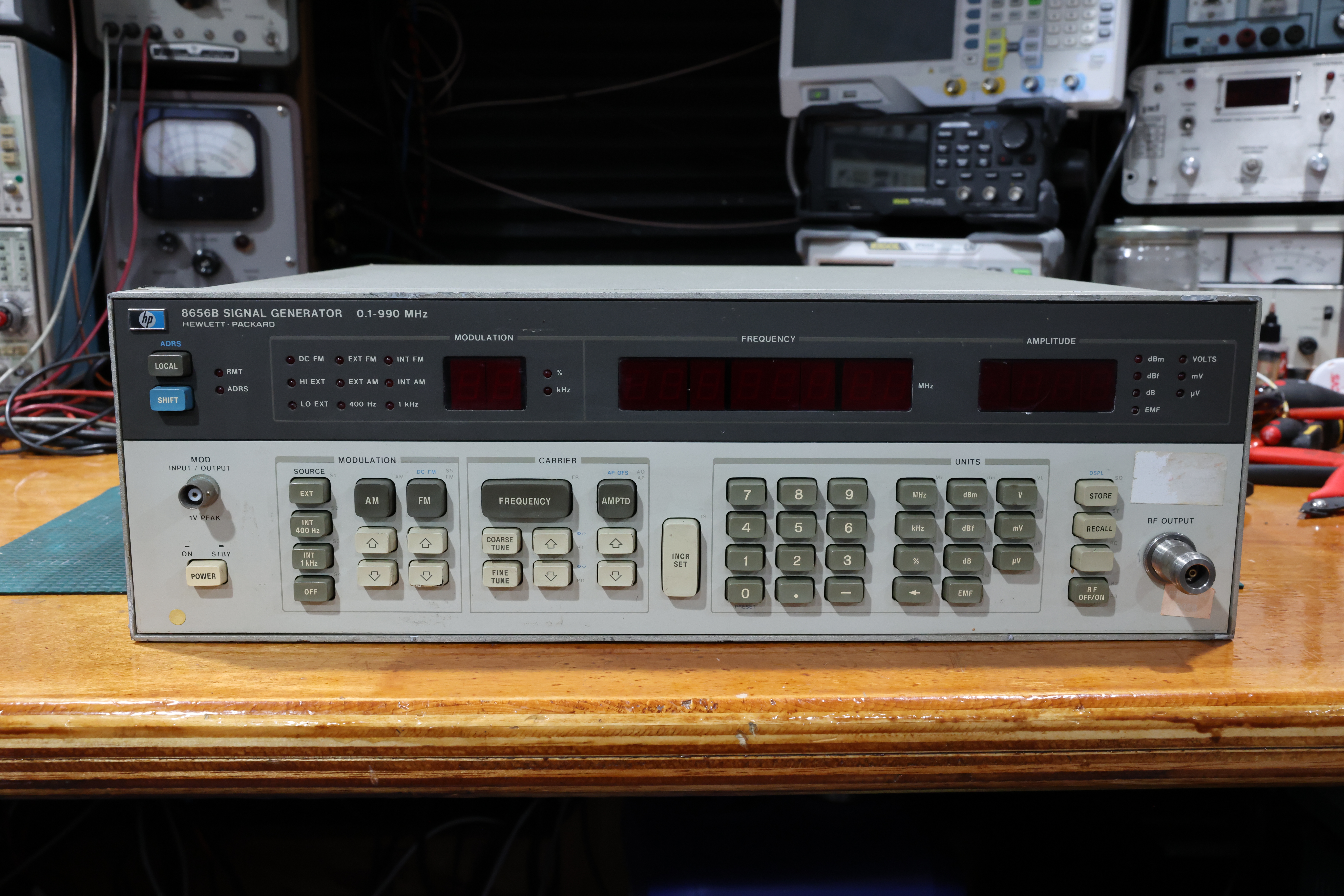

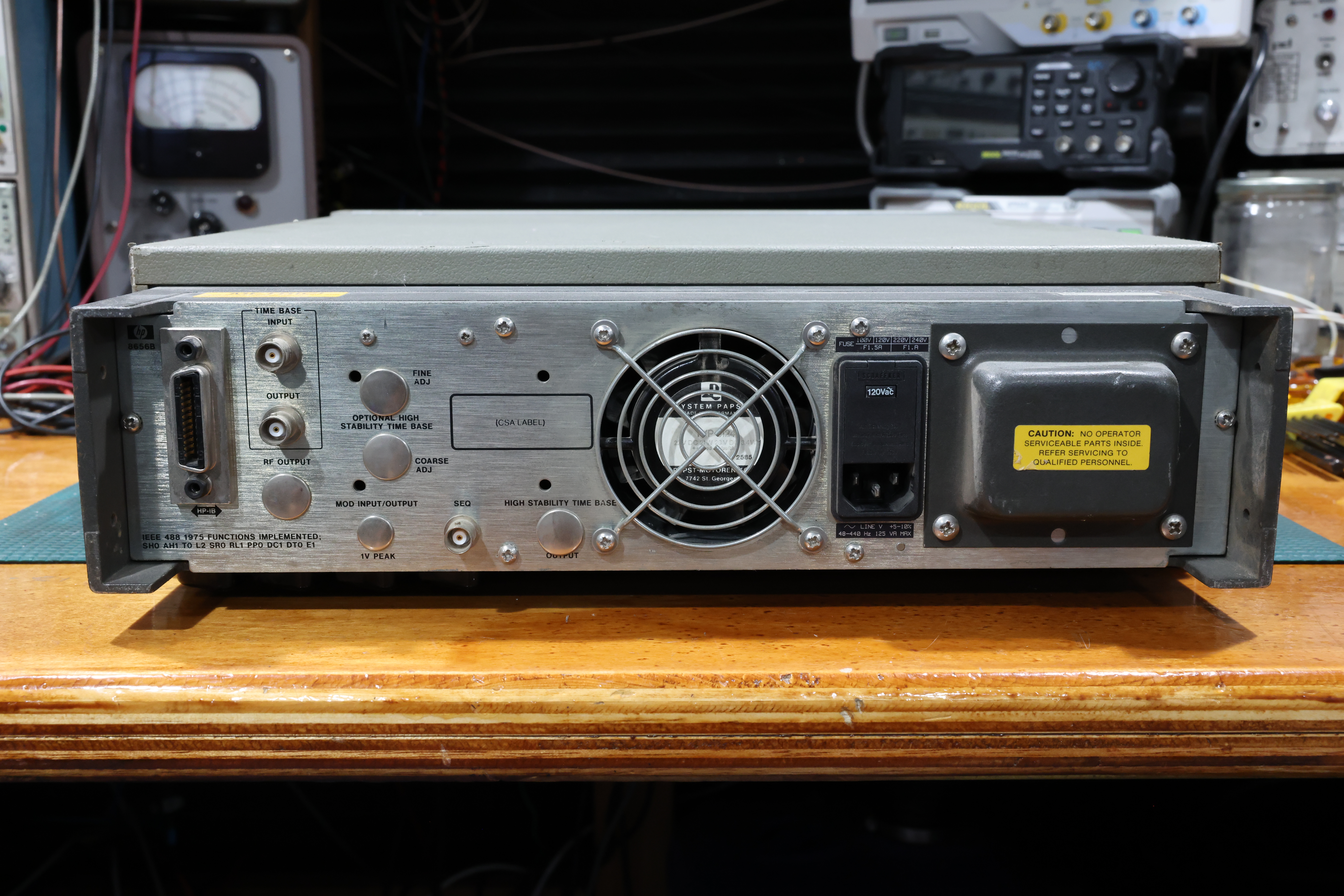

HP 8656B |
Repair and Function testing has been done but unit has not been calibrated. Unable to complete a full alignment due to lack of RF power meter SN - 2635A04649 Youtube Video showing Testing & Repair
|
$250 |
|||

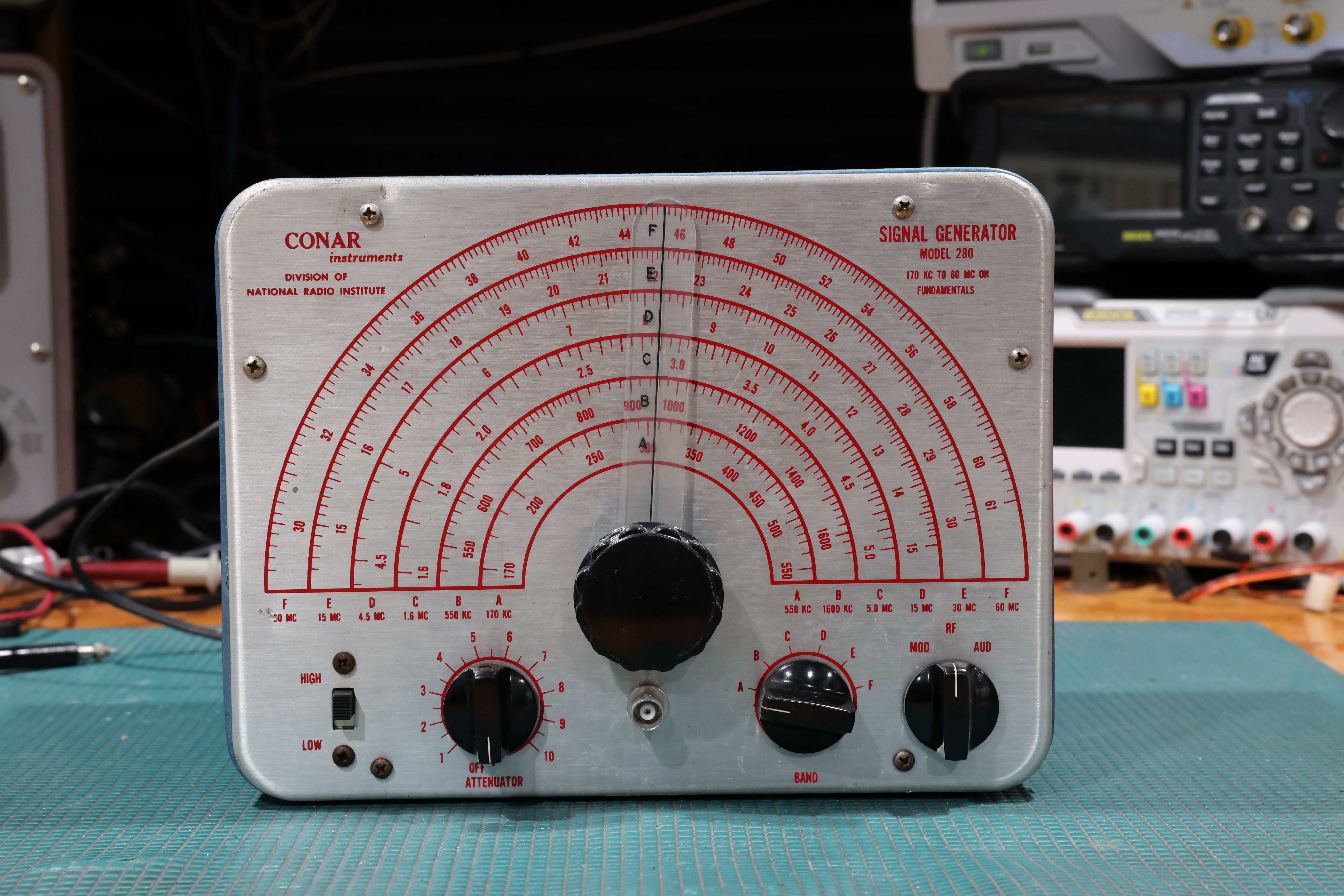

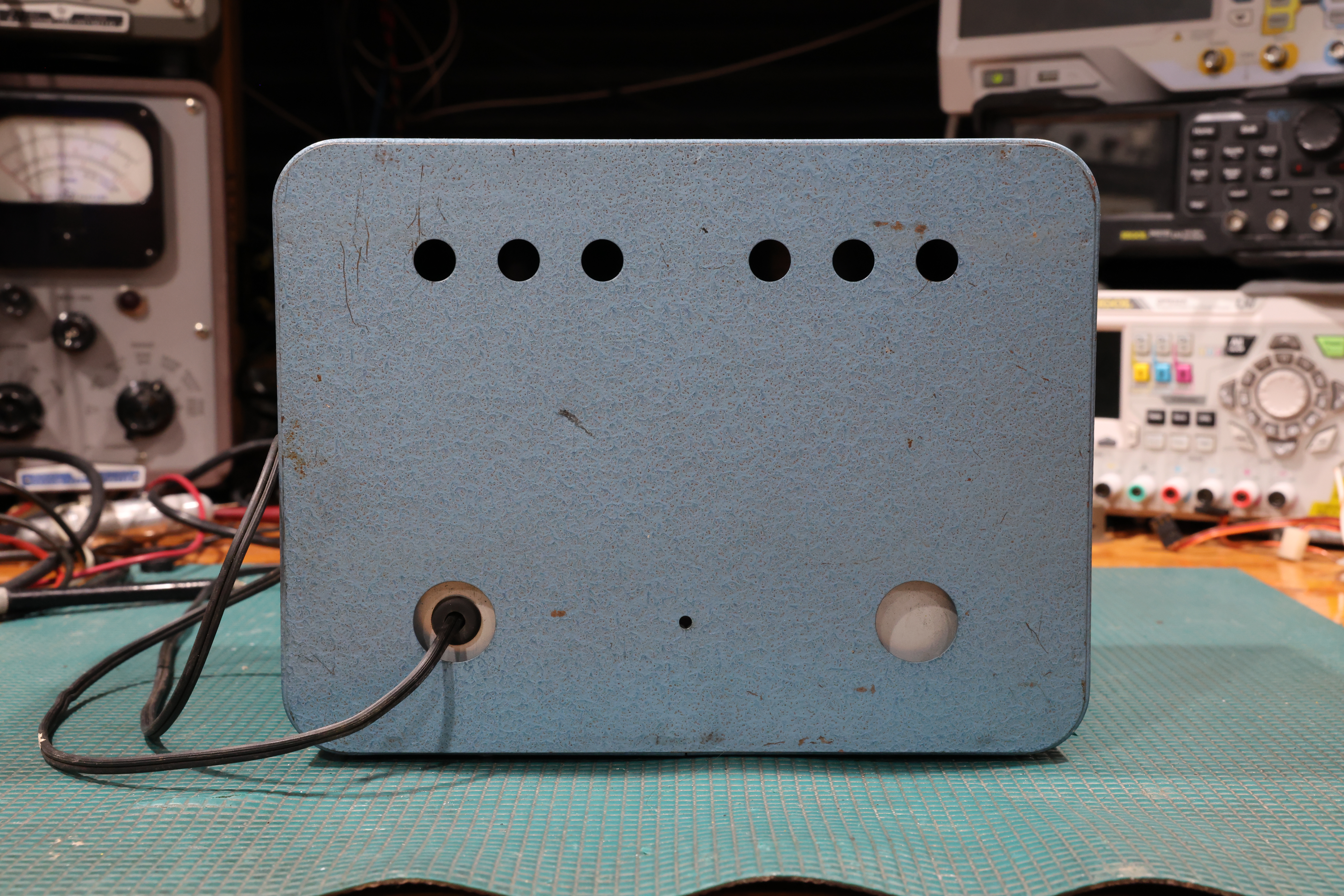

Conar Model 820 Signal Generator |
Fully Restored and aligned to the limits of the lab. SN - Kit Built Youtube Video showing Testing & Repair
|
$60 |
|||
"Misc T&M Equipment" | |||||

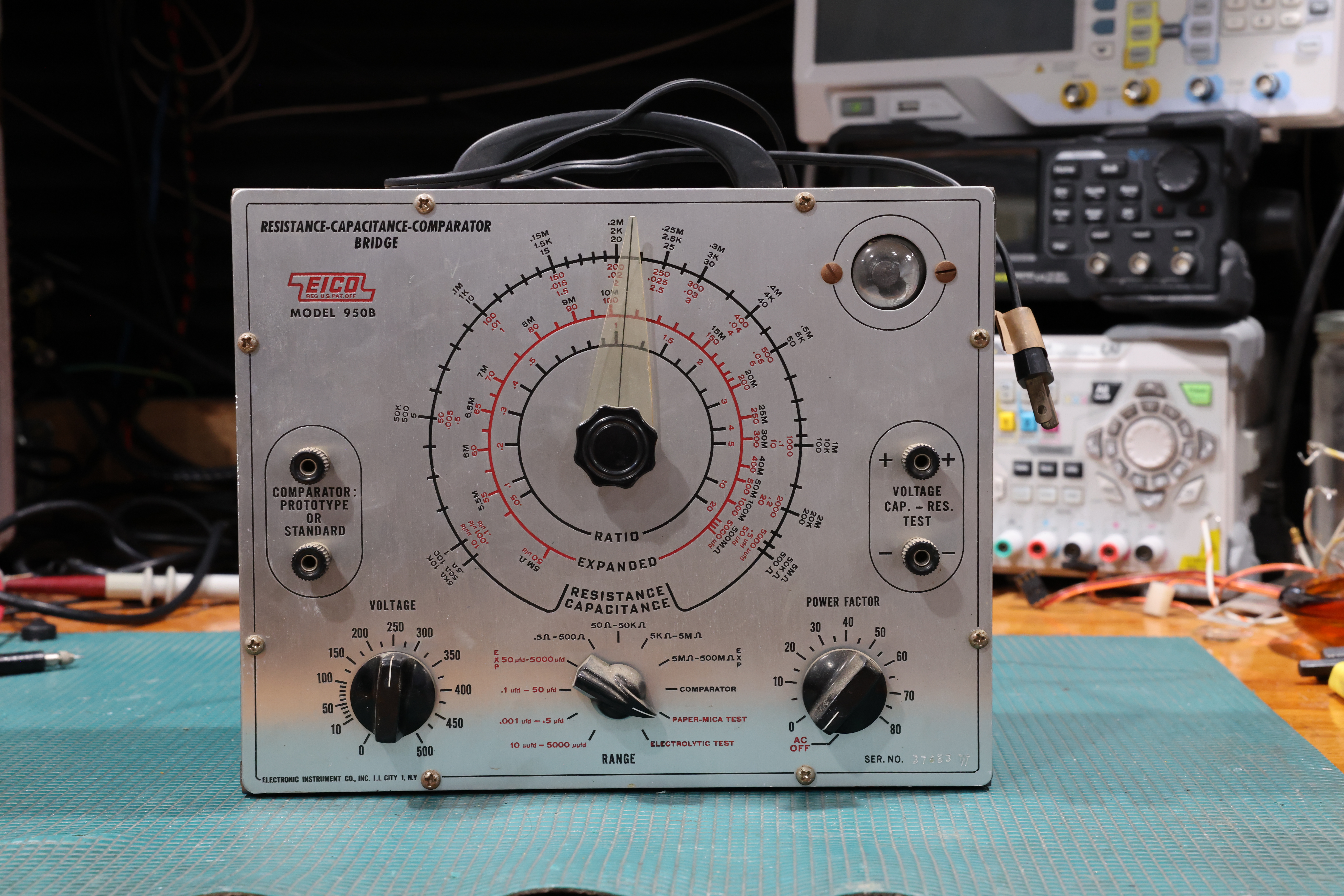

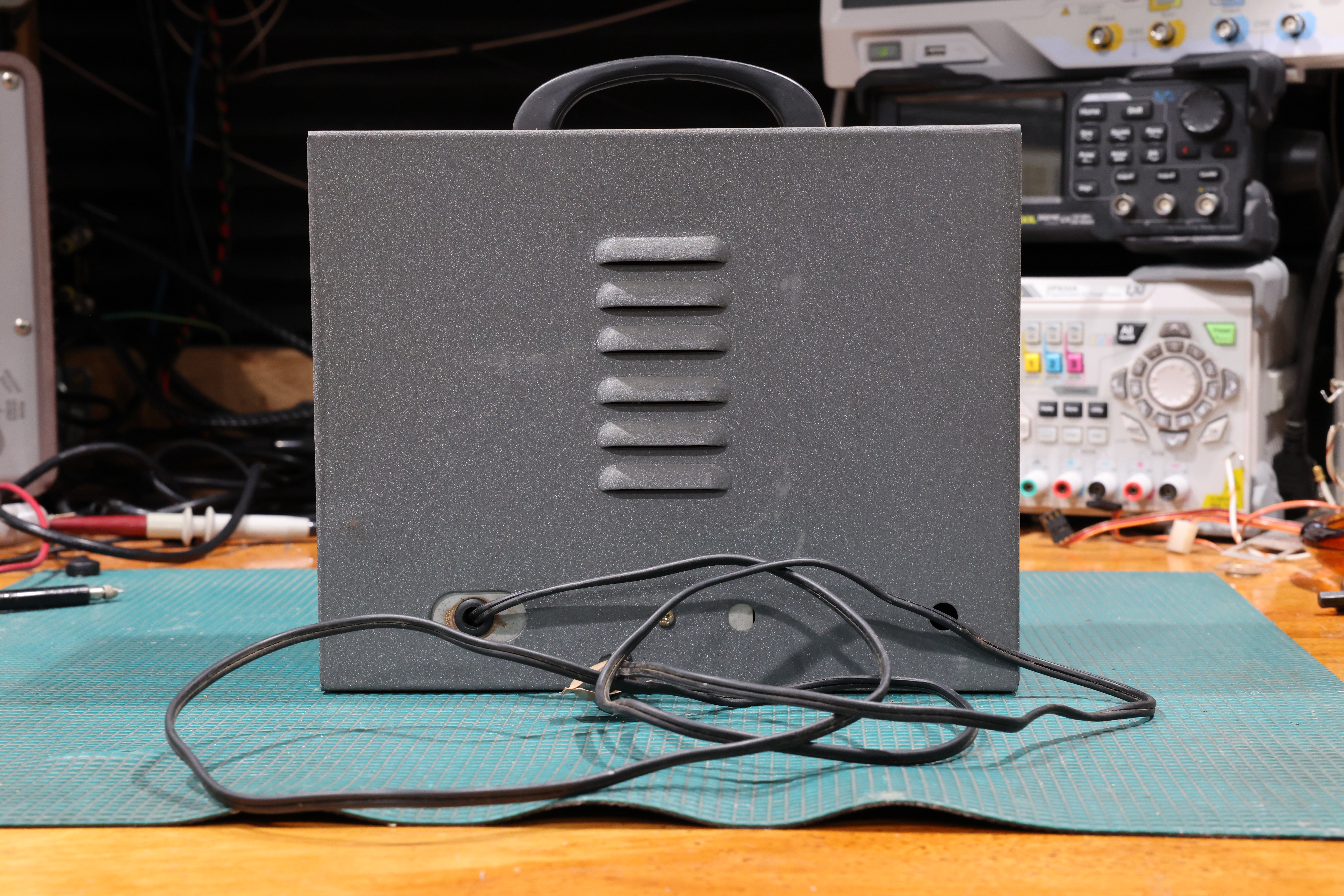

Eico 950B Capacitor Bridge and Leakage Tester |
Fully Restored and aligned to the limits of the lab. SN - Kit Built Youtube Video showing Testing & Repair
|
$100 |
|||

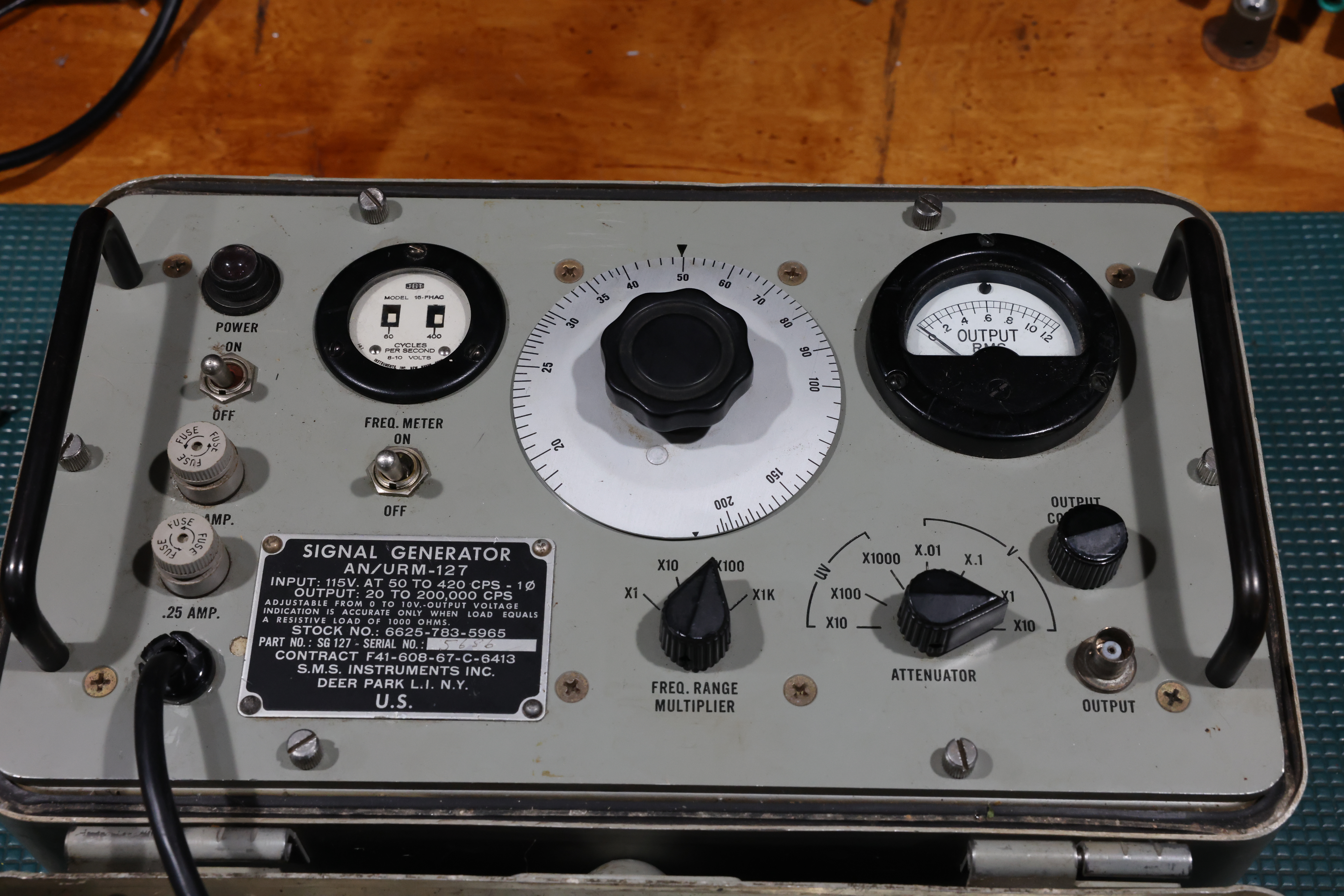

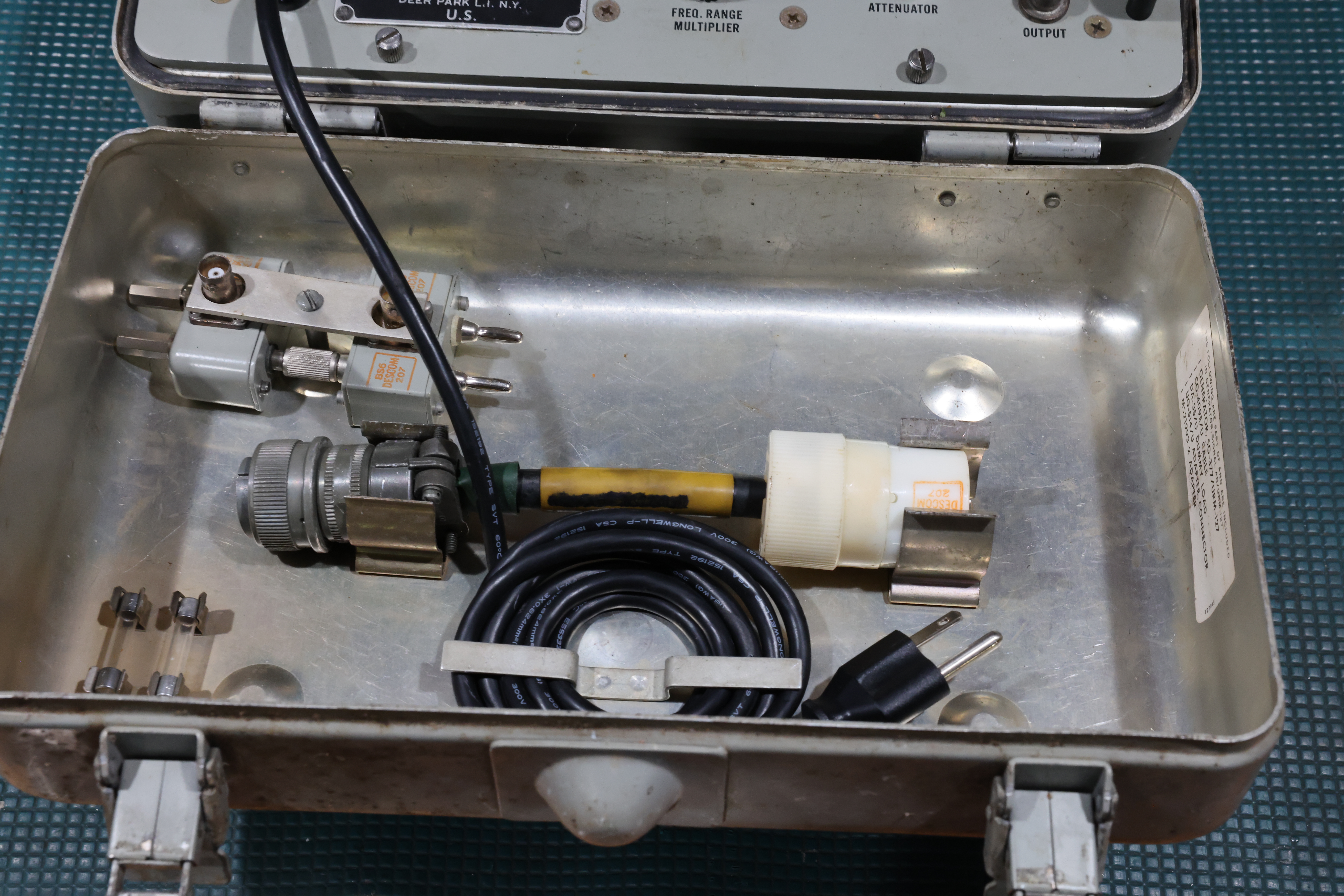

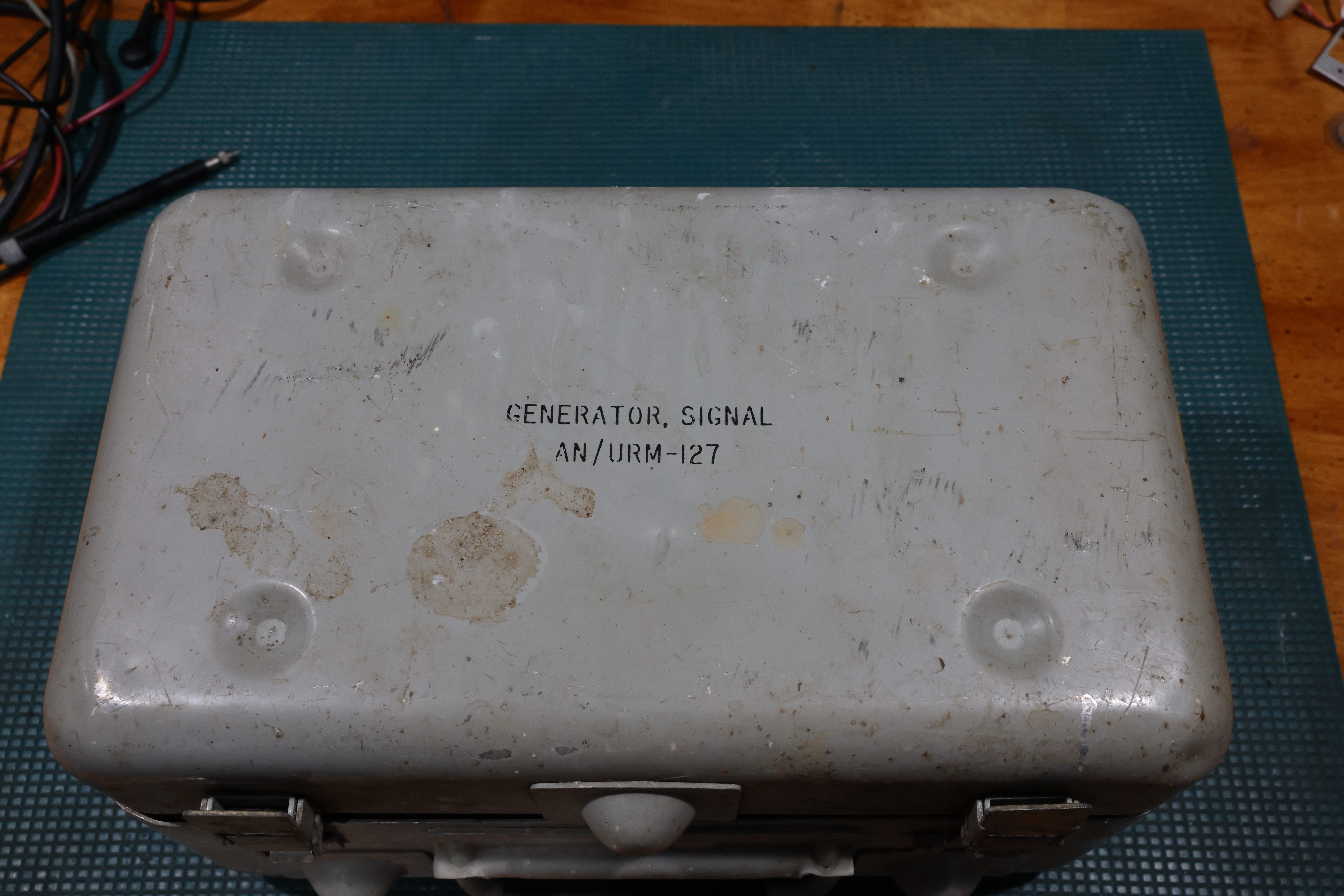

Signal Generator AN/URM-127 |
Fully Restored and aligned to the limits of the lab. SN - 5686 Youtube Video showing Testing & Repair (Not yet Released)
|
$80 |
|||
